Posted on 2025-01-29

Previous: Lab 1A

Setup and Configurations

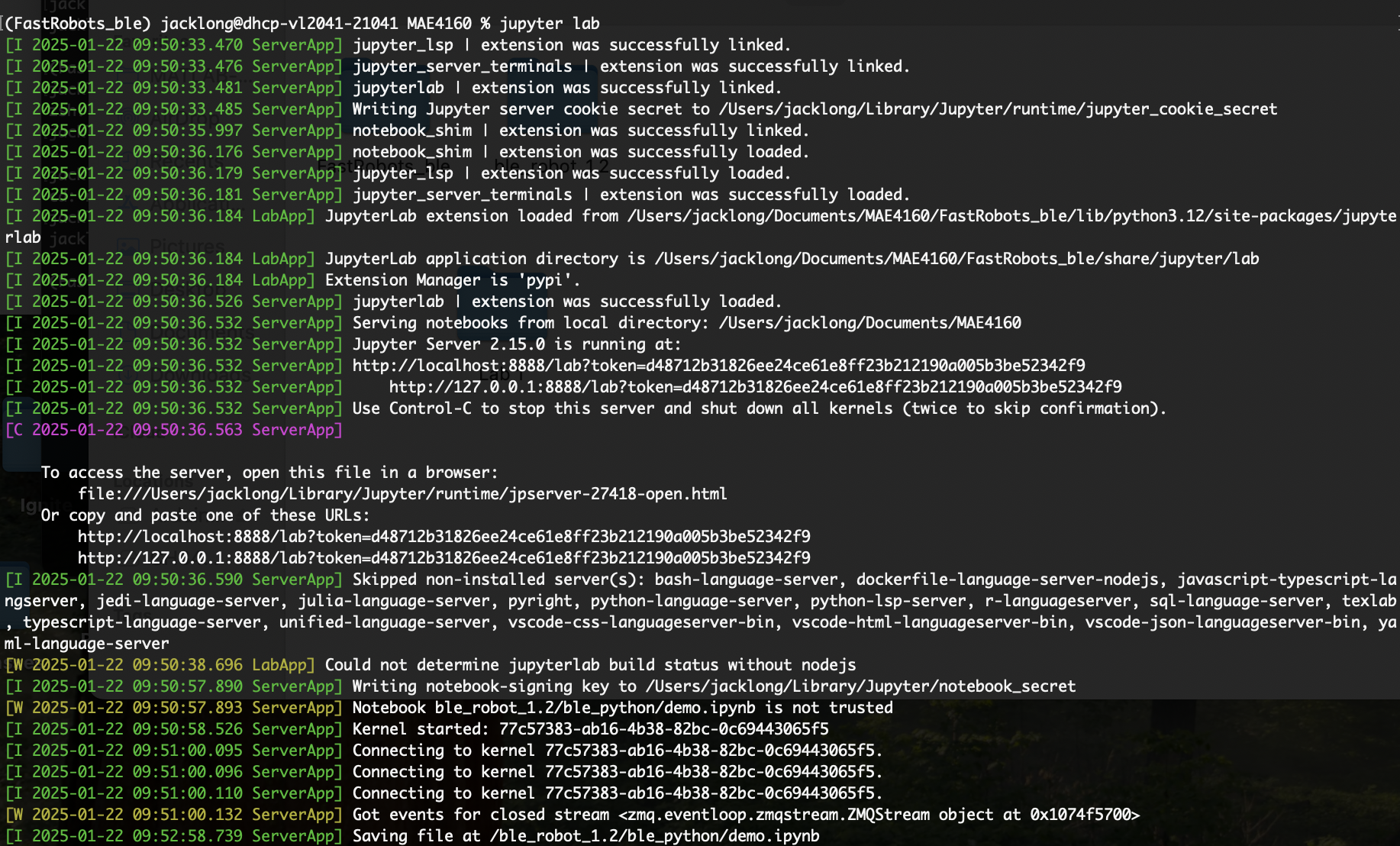

I created a Python environment and installed Jupyter Lab along with the other required packages and class codebase. I was able to start the Jupyter server successfully.

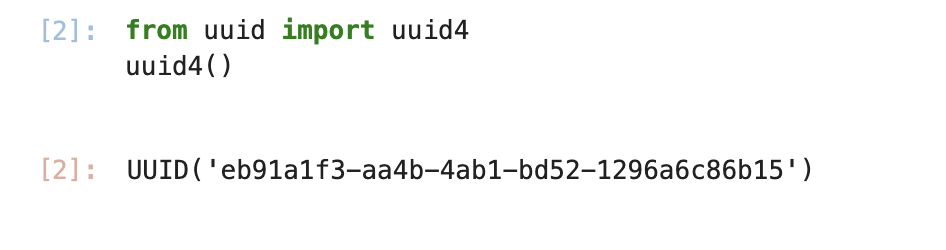

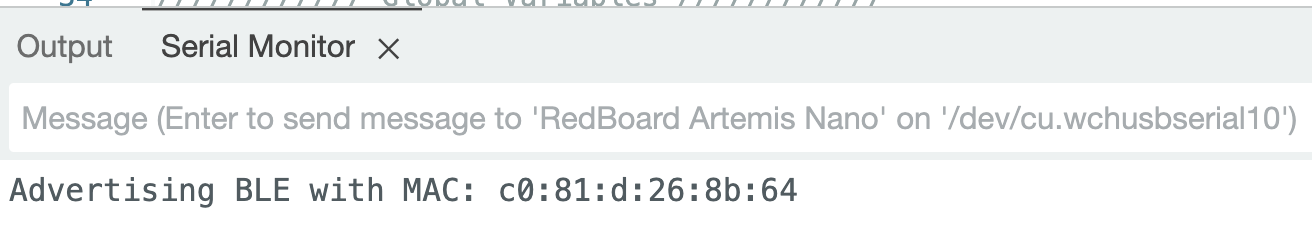

I uploaded ble_arduino.ino to the Artemis and was able to read its unique MAC address, as well as generate a uuid to update connection.yaml.

Lab

Task 1

I sent a string value from the computer to the Artemis board using the ECHO command. The computer received and printed an augmented string.

case ECHO:

    char char_arr[MAX_MSG_SIZE];

    // Extract the next value from the command string as a character array
    success = robot_cmd.get_next_value(char_arr);

    if (!success)
        return;

    /*
    * Your code goes here.

    */
    tx_estring_value.clear();
    tx_estring_value.append("Robot says ");
    Serial.println(char_arr);
    tx_estring_value.append(char_arr);
    tx_estring_value.append(" :)");
    tx_characteristic_string.writeValue(tx_estring_value.c_str());
break;

Task 2

I sent three floats to the Artemis board using the SEND_THREE_FLOATS command and extracted the three float values in the Arduino sketch.

case SEND_THREE_FLOATS:
    float float_a, float_b, float_c;

    // Extract the next value from the command string as an integer
    success = robot_cmd.get_next_value(float_a);
    if (!success)
        return;

    // Extract the next value from the command string as an integer
    success = robot_cmd.get_next_value(float_b);
    if (!success)
        return;


    success = robot_cmd.get_next_value(float_c);
    if (!success)
        return;


    Serial.print("Three Floats: ");
    Serial.print(float_a);
    Serial.print(", ");
    Serial.print(float_b);
    Serial.print(", ");
    Serial.println(float_c);

break;

Task 3

I added a command GET_TIME_MILLIS which makes the robot reply write a string such as "T:123456" to the string characteristic.

case GET_TIME_MILLIS:
    // clear and update string characteristic with current time
    currentMillis = millis();
    tx_estring_value.clear();
    tx_estring_value.append("T:");
    tx_estring_value.append((int)currentMillis);
    tx_characteristic_string.writeValue(tx_estring_value.c_str());

break;

I set up a notification handler in Python to receive the string value (BLEStringCharacteristic in Arduino) from the Artemis board. It uses the ble function start_notify() with my notification_handler() to receive updates to BLE GATT characteristics concurrent with other code.

def notification_handler(uuid, data):

    # Decode the byte data into a string

    received_string = ble.bytearray_to_string(data)
    #print(f"Received string: {received_string}")


    try:
        # Split the string into key-value pairs
        key_value_pairs = dict(pair.split(":") for pair in received_string.split(","))
        # Extract the time value
        time_value = key_value_pairs.get("T", "Time not found")
        # extract temp value
        temp_value = key_value_pairs.get("F", "Temp not found")
        print(f"Extracted time: {time_value}")
        print(f"Extracted temp: {temp_value}")
    except Exception as e:
        print(f"Error parsing the string: {e}")

Task 5

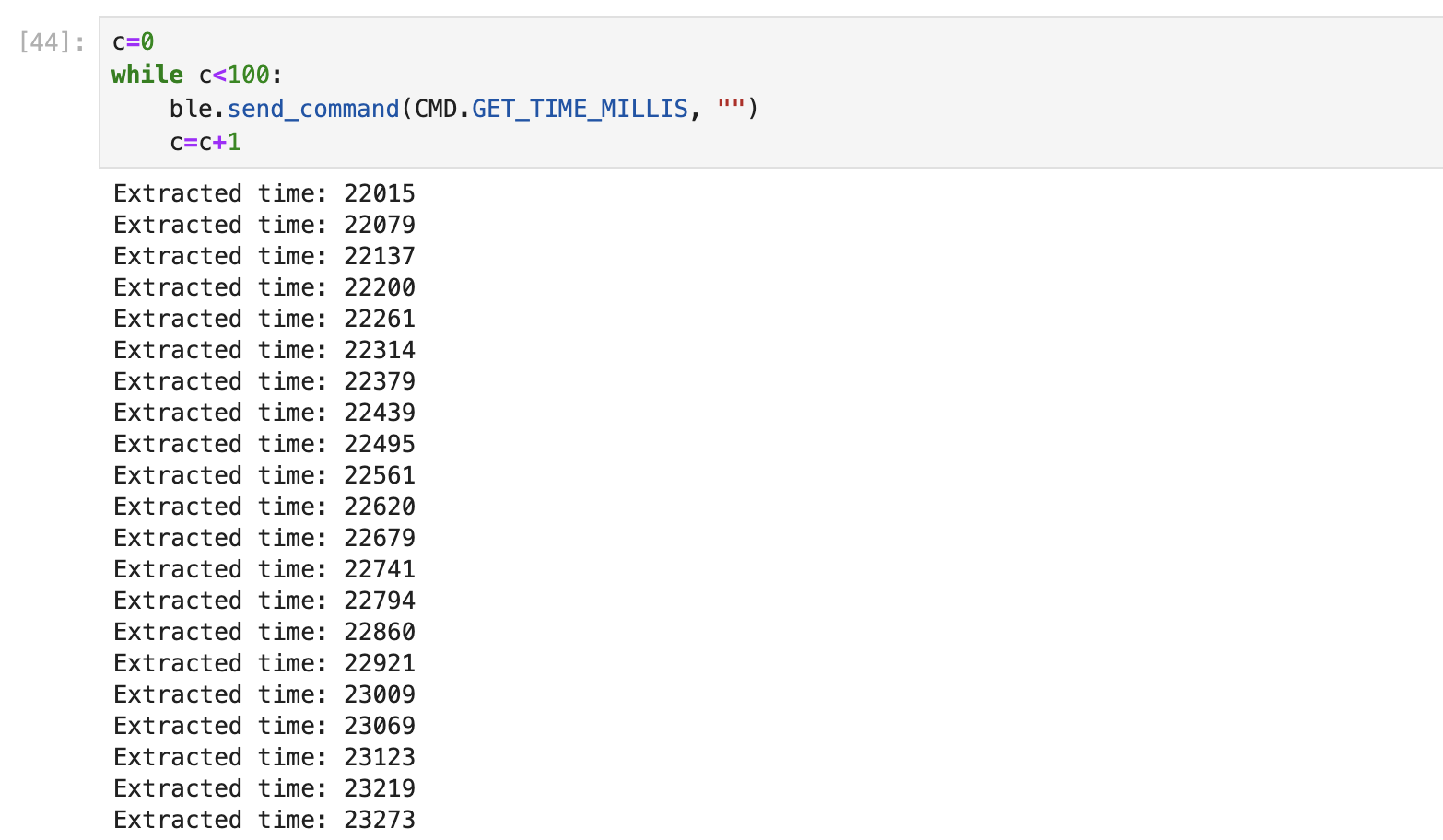

I wrote a loop that gets the current time in milliseconds and sends it to my laptop to be received and processed by notification_handler(). After collecting these values, I found that each was transmitted approximately 60 ms after the last. This is around 17 transmissions per second, and with 13 bytes per message (for a char array of length 12), approximately 200 bytes per second.

Task 6

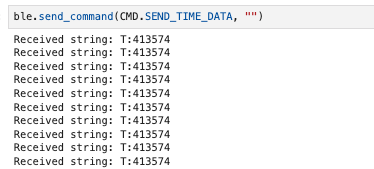

I then defined a global array timeStamps to store time stamps, and added a command SEND_TIME_DATA to place each time stamp into the array rather than writing each one to the string GATT characteristic. Then, I looped over timeStamps and sent each data point as a string to my laptop to be processed.


case SEND_TIME_DATA:

          for (int i=0; i<100; i++){
            currentMillis = millis();
            timeStamps[i] = currentMillis;
          }


          for (int i=0; i<100; i++){
            tx_estring_value.clear();
            tx_estring_value.append("T:");
            tx_estring_value.append(timeStamps[i]);
            tx_characteristic_string.writeValue(tx_estring_value.c_str());
          }
break;

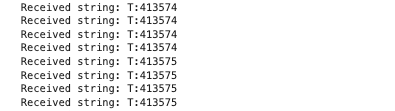

... and after a while ...
send time millis

Task 7

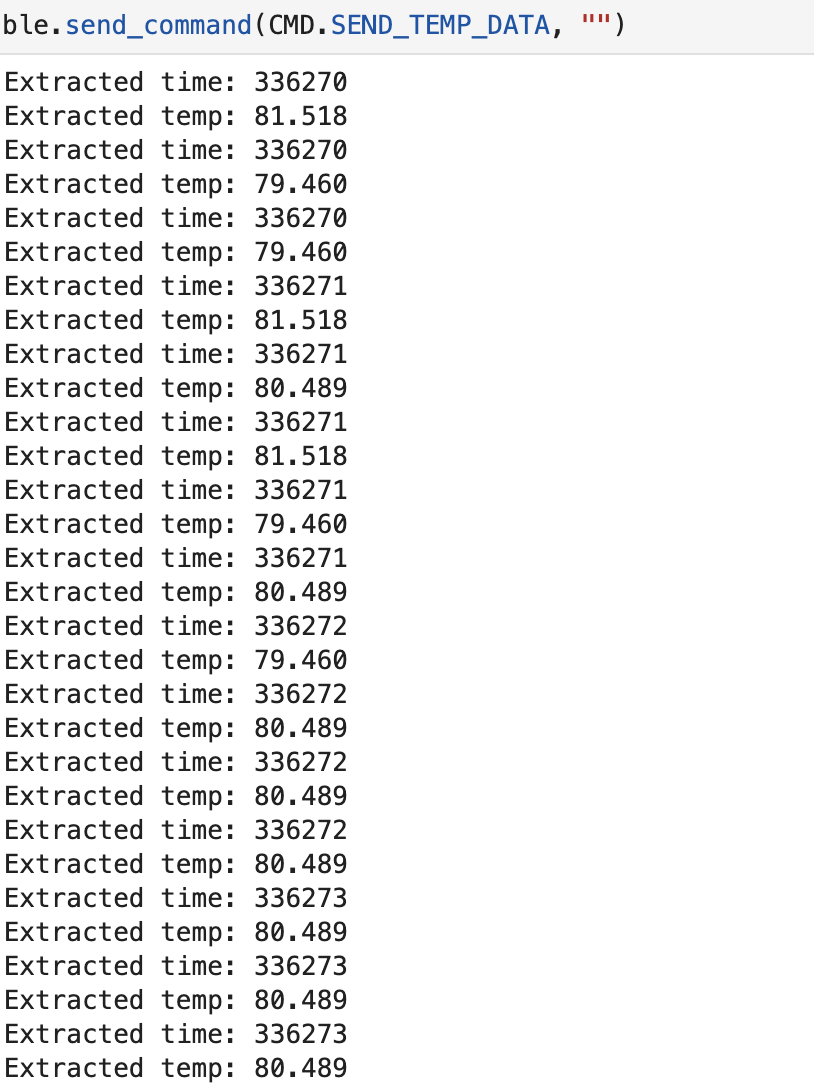

I implemented a similar assignment process for temperature readings from the Artemis using the command SEND_TEMP_DATA. The notification handler is able to parse both time and temprature.

case SEND_TEMP_DATA:
    for (int i=0; i<20; i++){
    currentMillis = millis();
    timeSteps[i] = (int)currentMillis;
    temps[i] = (float)getTempDegF();
    }
    for (int i=0; i<20; i++){
    tx_estring_value.clear();
    tx_estring_value.append("T:");
    tx_estring_value.append(timeSteps[i]);
    tx_estring_value.append(",");
    tx_estring_value.append("F:");
    tx_estring_value.append(temps[i]);
    tx_characteristic_string.writeValue(tx_estring_value.c_str());
    }
break;

Task 8

Method 1 records data at a significantly lower rate, but outputs to the computer after every round of collection. This could be useful if real-time decisions must be made based on sensor readings. For an open-loop test, method 2 is much more useful. The data recorded generated has much higher resolution than that of method 1, but there is a delay between the Artemis recording data and the computer receiving it.

It took just over 25 ms for the Artemis to store 100 time and temp readings. With int timestamps and float temperatures, the data recorded at each step is 8 bytes, for a data rate of about 320 bytes per second. Currently defined global variables use about 30kB, so with the 354kB remaining, we can store just over 40,000 temp and timestamp sets.

Collaboration

I worked with Lucca Correia and Trevor Dales extensively, and referenced Daria's site for some notification handler and SEND_TIME_DATA pointers.
